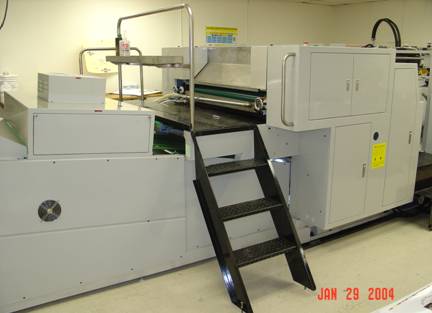

      AUTOMATIC SPOT UV COATING MACHINE / WATER BASE
      Model KMAUW-106

This machine is suitable to automatic UV spot or full varnishing of thick or thin paper.

Specifications :



Maximum Paper Size

1060 mm x 740 mm

Minimum Paper Size

450 mm x 360 mm

Stock Range

100 - 600 gsm (0.1 – 0.65 mm) (0.004" ~ 0.025")

Maximum Varnish Area

1050 mm x 730 mm

Gripper Bite

6 - 8 mm

Maximum Mechanical Speed

4500 - 6000 Sheets per hour (IR System)
7200 Sheets per hour (UV System)

Curing Power Source

24 KW (IR System)
24 KW (UV System)

Total Power Required

55 KW (220V, 3-Phase, 150A, 60 Hz)

Weight of Machine

9,150 KG

Machine Dimensions

9630 x 2410 x 1912 mm (L x W x H) *
* the machine dimension will be changed for the IR unit.



   Designed Features :

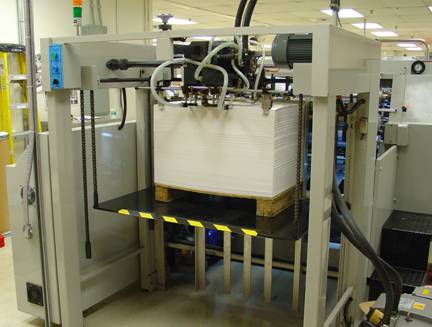

Feeder

-

Stream Feeder



-

Double Sheet Detector



-

Pile Shifting Device



-

Air Pump for Feeder Head (Blow and Vacuum)



Main Machine

-

Swing Arm Infeed (Gripper style)



-

Powerful main motor with infinite variable speed control





Automatic pneumatic impression on/off device



-

3 Gripper Bars



-

PLC Control System



-

Special Designed UV Coating System



-

Heated Varnish Tank for Re-Circulating type varnish supply system



UV Dryer

-

High-Power UV Lamps with Reflectors



-

Excellent Exhaust System



-

Well Guarded, no leak of UV light



-

Conveyor Transfer Sheet through UV Dryer



-

Separate Speed Control for the Conveyor

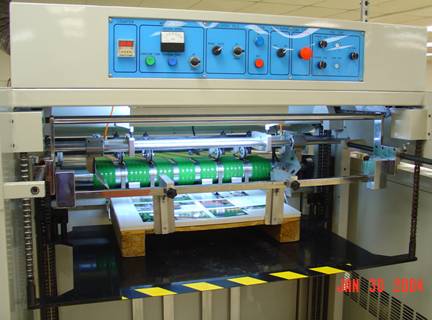

Delivery

-

Sturdy Structure, Stable Operation



-

Pile Jogger



-

Cooling Fan to Cool Down Paper Temperature after Drying



-

Slow Sown Vacuum Wheel
