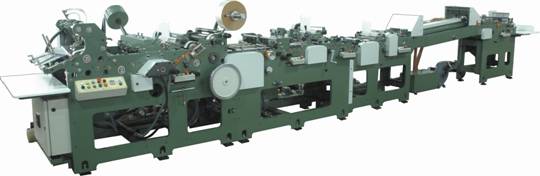

WINDOW ENVELOPE MAKING MACHINE
|
MODEL AE-301 |
|
| |
|
| |
SPECIFICATIONS |
MODEL AE-301 |
|
Machine Size |
9730 x 1635 x 1760 mm |
|
Window Size |
80 x 160 mm Max.
20 x 60 mm Min. |
|
Blank Size |
420 W x 330 L mm |
|
Capacity |
250 PC /MIN |
|
Power Required |
21 KW |
|
Machine Net Weight |
5600 KG |
|
| |
¡@¡@¡@¡@¡@¡@¡@¡@ AE-301 is an ideal Envelope Making Machine for small and medium production job |
| ¡@¡@¡@¡@¡@¡@ ¡@¡@¡@¡@¡@ to save operators, reduce down time, as a continuous processing machine. |
| ¡@¡@¡@¡@¡@¡@¡@¡@Designed with stable and reliable quality, AE-301 is capable of high production efficiency, |
| ¡@¡@¡@¡@¡@¡@¡@¡@¡@Quick to adjust, easy to operate. |
| ¡@¡@¡@¡@¡@¡@¡@¡@On this model AE-301 envelope window is cut by magnet cylinder with flexible knives. |
| |
| ¡@¡@¡@¡@¡@¡@¡@ENVELOPES DESIGN AND SIZE : |
|
| |
|
Hydraulic Envelope Corner Cutting Machine
Model SY-PH1 |
Hydraulic Envelope Punching Machine ¡@¡@¡@¡@Model SY-PH2 |
|
|
Machine Size |
800 x 1030 x 1730 mm |
Machine Size |
1400 x 1360 x 1300 mm |
Working Table |
900 x 500 mm |
Press Bridge |
660 x 1100 mm |
Press Bridge |
290 x 800 mm |
Working Table |
1360 x 1100 mm |
Cutting Pressure |
10 Tons |
Height of Adjustable |
80 - 180 mm |
Capacity |
70 mm |
Punching Pressure |
30 Tons |
Cutting Height |
2 ¡V 4 mm |
Motor |
5 HP |
Window Size |
Max. 50 x 150 mm
Min. 30 x 80 mm |
Machine N.W |
1700 kg |
|
| |
Auto Envelope Making Machine¡@(Chinese Type) |
Auto Envelope Making Machine¡@(Chinese Type) |
Model SY-CE3A |
 |
|
Model SY-CE11 |
 |
|
Model |
SY-CE3A |
Model |
SY-CE11 |
Machine Size |
4000 x 1100 x 1250 mm |
Machine Size |
1900 x 800 x 1250 mm |
Product Size |
150 x 200 mm ¡V 300 x 420 mm |
Product Size |
50 x 95 mm to 120 x 230 mm |
Capacity |
60 - 150 PC/Min |
Max Paper Size |
250 (L) x 295 (W) mm |
Motor |
1 HP X 2 |
Paper Weight |
60 - 120 g/m2 |
Machine N.W |
1000 kg |
Capacity |
200 ¡V 250 PC/Min |
|
|
Motor |
1HP x 2 & 4HP x 1 |
|
|
Machine N.W. |
1000 kg |
|
| |
Auto Envelope Flap Gumming Machine |
Model SY-FG3A |
|
Auto Envelope Machine (Air-Mail Type) |
¡@Model SY-AE1A |
|
|
|
Model |
SY-FG3A |
Model |
SY-AE1A |
Machine size |
3800 x 950 x 1450 mm |
Machine Size |
2950 x 1000 x 1200 mm |
Gumming Width |
Max Width 300 mm |
Product Size |
90 x 125 mm to 140 x 240 mm |
Paper Size |
350 (L) x 450 (W) mm |
Max Paper Size |
350 (L) x 500 (W) mm |
Paper Weight |
150 - 250 G/M2 |
Paper Weight |
60 - 120 g/m2 |
Motor |
1HP x 3 |
Capacity |
120 - 150 PC/Min |
Heat |
4800 W |
Motor |
1HP x 2 |
Machine N.W. |
1000 kg |
Machine N.W. |
1200 kg |
|
| |
PAPER BAG MAKING EQUIPMENT |
High Speed Paper Bag Making Machine |
Model SY-PB1 |
|
Auto Square-Bottom Bag Making Machine |
Model SY-FA26 |
|
Auto Feeding ¡÷ 2 Colors Printing ¡÷ Gluing ¡÷ Forming ¡÷ Cutting ¡÷Fold Bottom ¡÷Paper Arrange/Count ¡÷Paper Bag |
|
Model |
SY-PB1 |
Model |
SY-FA26 |
|
Printer |
Gumming |
Forming |
Blank Sheet Width |
380 ¡V 810 mm |
Length |
3000 mm |
1400 mm |
4400 mm |
Blank Sheet Length |
260 ¡V 500 mm |
Width |
1900 mm |
2000 mm |
2500 mm |
Basic Sheet Weight |
100 ¡V 150 g/m2 |
Weight |
2200 kg |
400 kg |
2400 kg |
Forming Bag Width |
120 - 260 mm |
Capacity |
250 - 500 PC/Min |
Bottom Width |
60 ¡V 130 mm |
Power |
Printer 2.5 HP / Total 6 HP |
Bag Length |
220 ¡V 400 mm |
| |
|
Max. Speed |
100 PC/Min |
| |
|
Power Consumption |
9 KW |
| |
|
Machine Dimension |
12.2 x 1.6 x 1.5 Meter |
|
|
