¡@¡@¡@¡@¡@¡@We provide full line CORRUGATOR MAKING EQUIPMENTS,ENVELOPE MAKING
|
¡@¡@¡@¡@¡@¡@With 3 ply - 5 ply - 7 ply, and Width from 1.6 M to 2.5 M. |
¡@¡@¡@¡@¡@¡@¡@The Corrugator production equipment is designed and engineered to bring productivity, |
¡@¡@¡@¡@¡@¡@¡@quality and dependable performance to our customers. |
|
|
|
|
|
A, B, C, E, F Flutes corrugator combination selected by customers. |
A flute |
34 ¡Ó 2 flutes/300 mm |
Height of flute 4.7 ¡Ó 0.15 mm |
B flute |
48 ¡Ó 2 flutes/300 mm |
Height of flute 2.8 ¡Ó 0.15 mm |
C flute |
40 ¡Ó 2 flutes/300 mm |
Height of flute 3.7 ¡Ó 0.15 mm |
E flute |
85 ¡Ó 2 flutes/300 mm |
Height of flute 1.5 ¡Ó 0.15 mm |
F flute |
126 ¡Ó 2 flutes/300 mm |
Height of flute 0.95 ¡Ó 0.15 mm |
|
|
Double Wall Corrugator Line Specifications |
Model |
160 |
180 |
220 |
250 |
Max. Paper Width |
1600 mm |
1800 mm |
2200 mm |
2500 mm |
Steam Pressure |
12 kg/c¢T |
12 kg/c¢T |
12 kg/c¢T |
12 kg/c¢T |
Air Pressure |
7 kg/c¢T |
7 kg/c¢T |
7 kg/c¢T |
7 kg/c¢T |
Designed Speed
(Meter/Minute) |
150¡@200?? 250 |
150?? ?200?? ?250 |
150?? 200?? ?250 |
150¡@ 200¡@ 250 |
Steam Cons. (kg/hr) |
2000? 2200? 2500 |
2400?? 2700?? 3000 |
3500? 3700?? 4000 |
4000¡@4200¡@4500 |
Power Required HP |
180?? 200??? 220 |
230??? 250??? 280 |
300?? 320 ¡@¡@350 |
570¡@ 600 ¡@650 |
|
|
|
MILL ROLL STAND |
AUTO SPLICER (as an Option) |
|
|
PRE-HEATER |
FINGERLESS SINGLE FACER |
|
|
OVERHEAD BRIDGE |
DUPLEX PREHEATER / TRIPLEX PREHEATER |
|
|

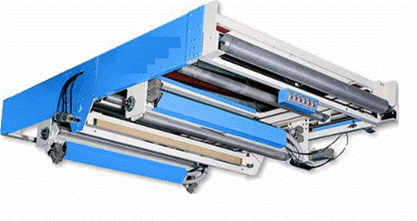

GLUE MACHINE |
DOUBLE FACER |
|
|
DRIVING EQUIPMENT |
NC SLITTER SCORER |
|
|
NC CUTTER |

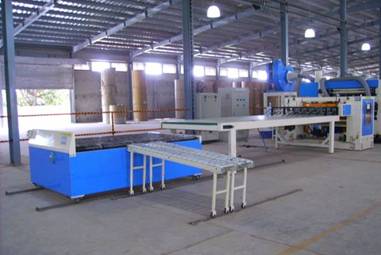

SHEET DELIVERY |
|
|
|
|
|
|

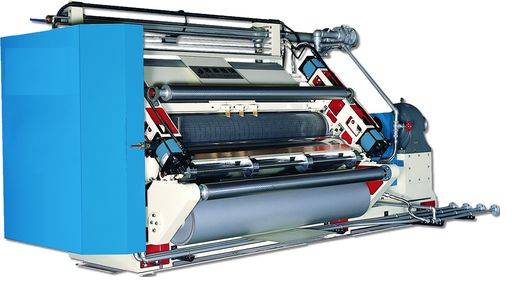

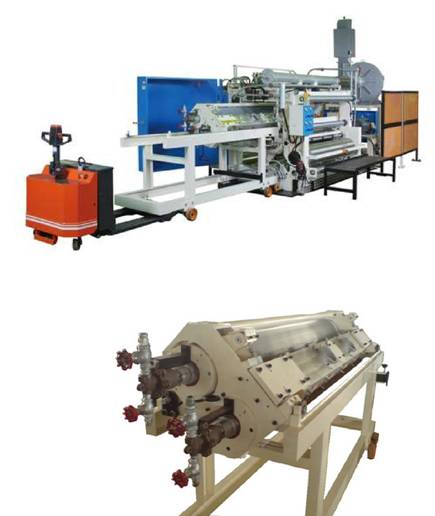

¡@ ¡@¡@¡@NEW!! CASSETTE SINGLE FACER (BLOWING TYPE) |
¡@¡@¡@¡@¡@
¡@¡@¡@¡@¡@
|
¡@¡@ |
¡@¡@¡@ It is making the medium to be impressed through the corrugated roll and became the corrugated type,: |
¡@¡@¡@¡@ ¡@then glued on the corrugated top and sticking with the liner to be single facer. |
¡@¡@¡@ Corrugating type device adopts excellent combination in order to save paper. |
¡@¡@¡@ The forward / afterward moving of Glue Unit is also controlled by 2 pc of hydraulic cylinder: |
¡@¡@¡@¡@ ¡@DIA. 80 x ST50, and operated with the magnetic valve. |

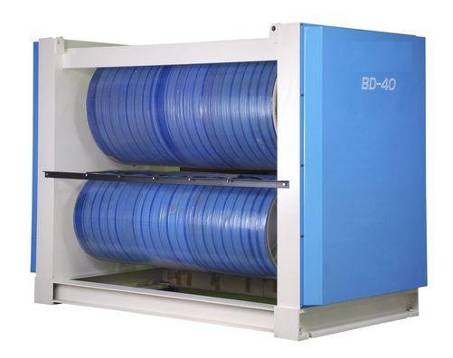

¡@¡@¡@ While changing the corrugated roll set, upper and lower corrugated roll units are positioned by V type |
¡@¡@¡@¡@¡@block, left/right is positioned by DIA. 80 x 100 ST hydraulic cylinder pushing slanting block |
¡@¡@¡@ The whole gluing platform is installed in the interior side frame, the gluing platform is pushing out by |
¡@¡@¡@¡@¡@ hydraulic cylinder driven, easy for clean, the position for gluing platform is adopted cone structure, |
¡@¡@¡@¡@equipped with hydraulic cylinder for precision position. |
