| Automatic Diecutting and Creasing Machine |
MODEL JSF-1650 |
| Model Number |
JSF-1650 |
| Size of Cutting Plate |
1800 x 1270 mm |
| Maximum Sheet Size |
1650 x 1200 mm |
| Minimum Sheet Size |
660 x 660 mm |
| Thickness of Material Card board |
0.2 ¡V 3 mm |
| Plastic board |
0.2 - 2 mm |
| Corrugated board |
up to 7.8 mm |
| Maximum Speed |
1200 sheets/hour production speed shall depend on job size and material quality |
| Machine Weight |
16,000 kg |
| Dimension |
L 800 x W 310 x H 230 cm |
| Power |
22 kw |
| Shipment container |
one 20¡¦GP + one 20¡¦ flat rack |
|
|
|
|
|
| |
|
 ¡@¡@ |

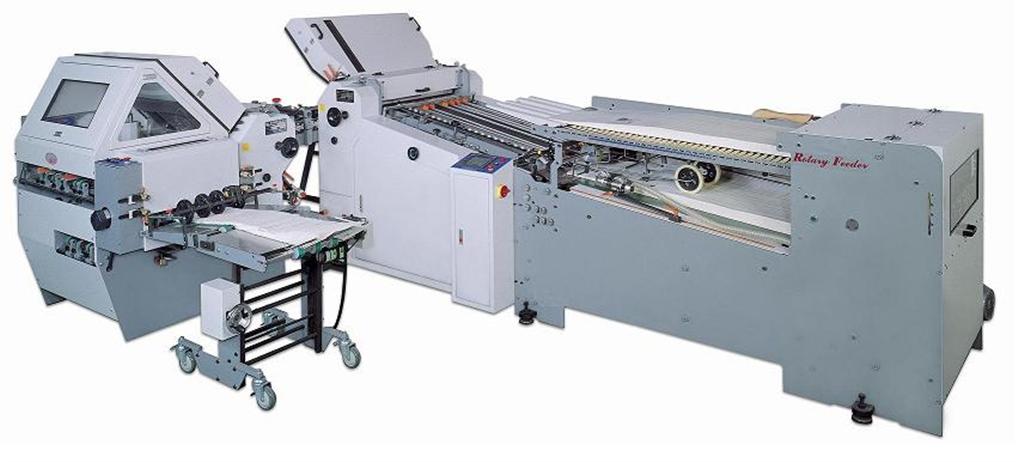

| Paper Folding Machine with ROTARY FEEDER |
MODEL RF72/4-4KL¡@¡@ |
| Model Number |
RF72/4-4KL |
| Sheet size (feeder) |
Max. 720 x 1100 mm / Min. 180 x 180 mm |
| Paper weight range |
50 ¡V 180 gsm |
| Folding speed |
Up to 210 meter/min , depending on stock and conditions |
| Knife cycle rate |
Up to 13000 stroke/hour, depending on stock and conditions |
| Power required |
7.5 HP (6 KW) |
| Size of machine |
4500L x 3600W x 1600H mm |
| Machine net weight |
2700 kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Automatic UV/Water Base Spot Varnishing Machine |
MODEL KMAUV & KMAUW- |
| Model Number |
KMAUW-144 |
| Maximum Sheet Size |
1440 x 1020 mm |
| Minimum Sheet Size |
700 x 500 mm |
| Thickness of Material Card board |
0.2 ¡V 0.65 mm |
| Plastic board |
0.2 - 2 mm |
| Maximum Varnish Area |
1420 x 1010 mm |
| Gripper Bite |
8 - 12 mm |
| Machine Speed |
UV: 4,000 ~ 4,500 sheets / hour
IR: 3,500 ~ 4,000 sheets/ hour
(Production speed depends on quality of board & thickness of board) |
| Curing Power Source |
UV : 36KW / IR : 40KW |
Machine Required Power
(without curing equipment) |
28 kw |
| Machine Weight |
15,150 kgs |
|
|
|
|
| |
|
| Full Automatic Box Making Machine without angle pasting |
MODEL ZK-320 |
| Paper wrap |
A min : 80 mm |
| A max : 300 mm |
| B min : 90 mm |
| B max : 400 mm |
| Box size |
L min : 50 mm |
| L max : 250 mm |
| W min : 40 mm |
W max : 150 mm |
| H min : 10 mm |
| H max : 60 mm |
| Turn in depth |
R min : 10 mm |
| R max : 25 mm |
| Paper wrap grammage (g/m2) |
Min : 100 mm |
| Max : 250 mm |
| Cardboard blank thickness |
Min : 0.8 mm |
| Max : 2 mm |
| Speed ( pcs/min ) |
20 - 35 |
| Paper pile height |
270 mm |
| Cardboard pile height |
350 mm |
| Electrical power |
9.57 KW |
| Glue tank capacity |
24 L |
| Air supply |
12 L/ min |
| Net weight |
2300 kg |
| Machine overrall dimension |
420 x 160 x 240 mm |
|
|
|
|
|
|
