TA SERIES FOLDER GLUERS ¡@¡@¡@
|
HIGH SPEED 4-6 CORNER FOLDING AND GLUING MACHINE |
|
¡@¡@¡@¡@¡@Straight line Folding with additional Side-fold blank |
¡@¡@¡@¡@¡@Crash-lock Bottom with Pre-break |
¡@¡@¡@¡@¡@4/6 Corner box folding |
¡@¡@¡@¡@¡@Pocket folder device |
¡@¡@¡@¡@¡@CD envelope, 1, 2 or 3 pockets, with rear glue tab. |
|
¡@¡@¡@¡@¡@New model with frame structure, remote control, large color stacking monitor/CCD system, |
¡@¡@¡@¡@¡@¡@and touch screen for easy job set-up and user-friendly operation. |
¡@¡@¡@¡@¡@Individually adjustable Feeder belts with Suction device, and Pneumatic feeder gate lifting device. |
¡@¡@¡@¡@¡@MANUALLY carriers positioning adjustment with indicators on each carrier to give easy make-ready. |
¡@¡@¡@¡@¡@PLC programmed two servo motor controlled back-folding system, is capable of all possible jobs |
¡@¡@¡@¡@¡@¡@include 4 and 6 points boxes, cake / gift boxes, lock bottom boxes, double sides boxes, |
¡@¡@¡@¡@¡@¡@and straight line boxes production. |
¡@¡@¡@¡@¡@Uniform size of cross bars to allow only one tool adjustment through out the machine. |
¡@¡@¡@¡@¡@Standard operation side lower glue pot is easy to remove and clean. |
¡@¡@¡@¡@¡@The upper glue system allowed to adopt Electronic Gold/Hot Melt Glue System depends on jobs demanding. |
¡@¡@¡@¡@¡@Option Alignment Modular is a Three-Belts system help to straighten a wider and slanting blanks out of |
¡@¡@¡@¡@¡@¡@Feeder, also this system allowed to make additional pre-break or pre-fold when this function not in use |
|
MODEL |
TA650 |
TA900 |
TA1100 |
Max. Sheet Size |
700 mm W ¡Ñ 800 mm L
|
900 mm W ¡Ñ 900 mm L |
1100 mm W ¡Ñ 1100 mm L |
Min. Sheet Size |
100 mm W ¡Ñ 55 mm L |
120 mm W ¡Ñ 55 mm L |
120 mm W ¡Ñ 55 mm L |
Max. Belt Speed |
325 m/min |
325 m/min |
325 m/min |
Overall Length |
12140 mm |
12740 mm |
12740 mm |
Overall Height |
2000 mm |
2000 mm |
2000 mm |
Overall Width |
1350 mm |
1550 mm |
1750 mm |
Main Motor |
15Kw |
22Kw |
22Kw |
Conveyor Motor |
1.5Kw |
2.2Kw |
2.2Kw |
Max Pumping Capacity |
0.7m3/min |
0.7m3/min |
0.7m3/min |
Total Weight : |
7500 Kg |
7800 Kg |
8000 Kg |
|
|
|
¡@¡@¡@¡@Electronic Glue System (Optional) |
¡@¡@¡@¡@ ¡@¡@Order separately with choice of HHS or NORDSON . |
¡@¡@¡@¡@¡@¡@¡@¡@We are able to order this glue system for customers with special OEM price discount, |
¡@¡@¡@¡@¡@¡@¡@¡@and SBL will install the glue system on machine in factory without extra cost |
|

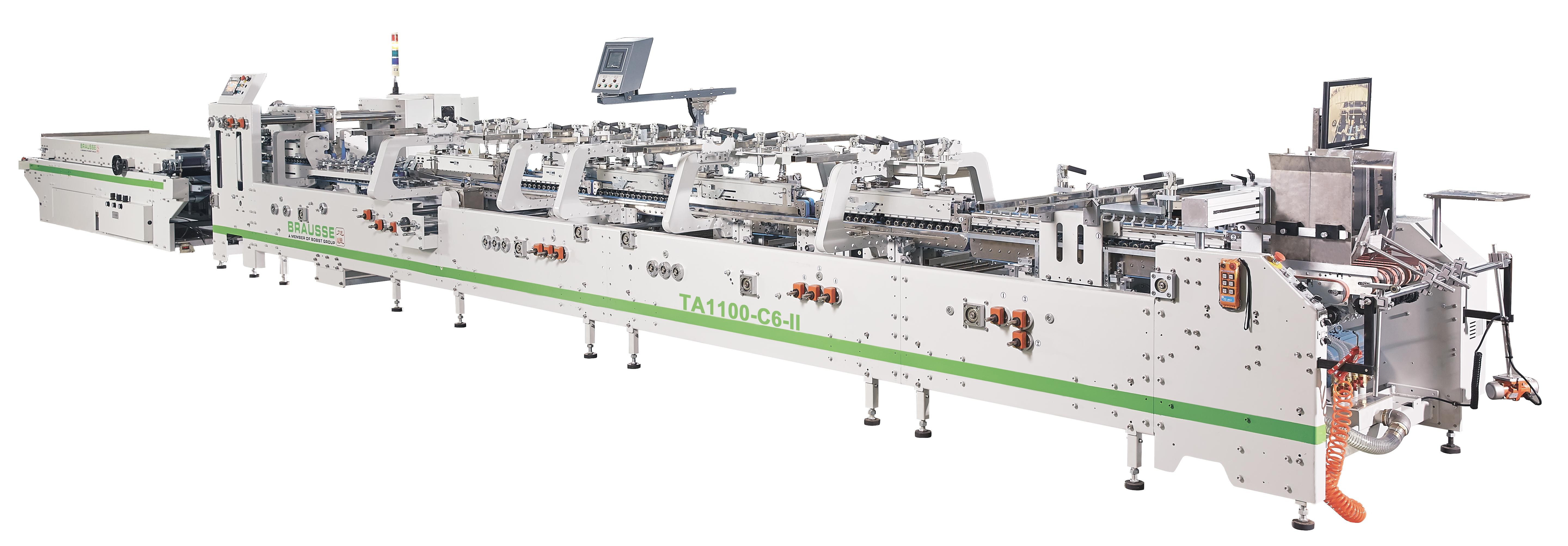

HIGH SPEED 4-6 CORNER FOLDING AND GLUING MACHINE TA1100-C6-II |
|
|
Specifications :
Max. Sheet Size |
:1100 mm W ¡Ñ 800 mm L |
Min. Sheet Size |
:126 mm W ¡Ñ 60 mm L
:76 mm W ¡Ñ 60mm L (Small Box Folding Device Applied as Optional) |
Max. Belt Speed |
:320 m/min |
Overall Length |
:about 12300 mm |
Overall Height |
:about 1600 mm |
Overall Width |
:about 2300 mm |
Main Motor |
:about 17 Kw |
Max Pumping Capacity |
:0.7m3/min |
Total Weight |
:about 7500 Kg |
|
|
|
|
|
|
