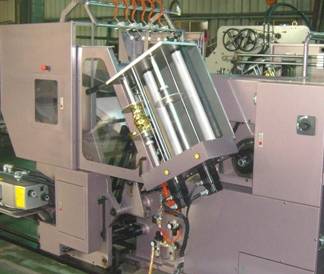

Automatic Foil Stamping Machine JSF-780F |
One machine for die-cutting, stamping and embossing |
|
¡@¡@ New improvement design on all machine chassis to make easy operation and heavy built with |
¡@¡@¡@¡@Steel frames structure.. |
¡@¡@ Touch screen monitor for entering foil job data, and much-easier-trouble shooting assistant |
¡@¡@¡@¡@page, to show all possible machine errors with in one page. |
¡@¡@ Adopt heavy duty and large size servo-motor for the foil pull system, to give much accurate foil |
¡@¡@¡@¡@pulling and easy access for the operator to load or unload foils. |
¡@¡@ New design electrical control by PLC (Programmable Logic Control System) and work with |
¡@¡@¡@¡@an encoder to obtain accurately machine running monitoring system. |
¡@¡@ Improved suction and blower devices for feeder. |
|
|
Specifications |
JSF-780F |
Size of Cutting Plate |
800 x 600 mm |
Max. Sheet Size |
780 x 570 mm |
Min. Sheet Size |
280 x 250 mm |
Inside Chase Size |
750 x 540 mm |
Max. Stamping Area |
780 x 550 mm |
Power of Heating Plate |
8 KW |
Max. Temperature |
180¢J |
Heating Zone |
4 |
Foil Puller |
2 |
Foil Diameter |
200 mm |
Thickness of Stock For Stamping |
0.12 ¡V 3 mm |
Thickness of Stock For Die-cutting |
0.1 ¡V 2 mm |
Max. Speed |
2200 sheets/hr |
Machine Weight |
5000 kg |
Machine Dimension (cm) |
L 380 x W 195 x H 205 |
|
|
|
|
Model. JSF-1150¡@Automatic Cutter and Creaser
|
|
SPECIFICATION |
JSF-1150 |
Size of Cutting Plate |
1150 x 850 mm |
Maximum Sheet Size |
1090 x 790 mm |
Minimum Sheet Size |
520 x 360 mm |
Thickness of Material |
Card board: 0.2 - 3 mm/ Plastic board: 0.2 - 2 mm
Corrugated board up to 7.8 mm |
Maximum Speed |
2100 sheets/hr (depend on stocks) |
Machine Weight |
9000 kg |
Machine Dimension |
L 5900 x W 2100 x H 2000 mm |
Power Required |
12 KW |
|
|

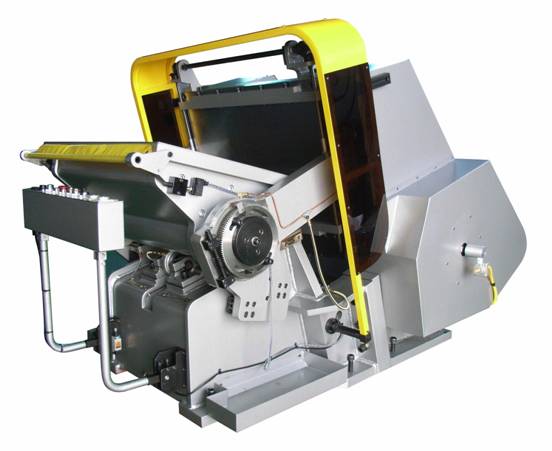

Hand Fed Die-Cutter and Creaser |
Brand New Build With Heavy Duty
|
And Steel Frame Structure. |
|
SPECIFICATION |
JSC-1150 |
JSC-800 |
Size of Cutting Plate |
1150 x 850 mm |
820 x 620 mm |
Max. Sheet Size |
1150 x 850 mm |
800 x 600 mm |
Thickness of Stock |
Light Weight Paper up to 7.8 mm Cardboard.
Plastic material up to 2 mm |
Maximum Speed |
2100 sheets/hr |
2100 sheets/hr |
Machine Weight |
6500 kg |
6500 kg |
Machine Dimension (cm) |
L 240 x W 170 x H 200 |
L 240 x W 170 x H 200 |
Power |
5.6 KW |
5.6 KW |
|
|
