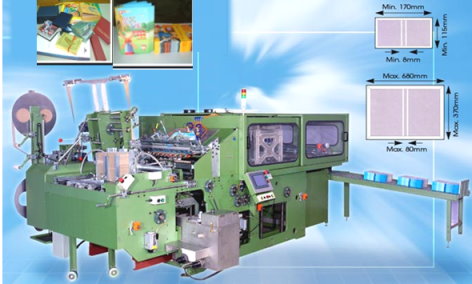

¡@¡@¡@¡@¡@DELUXE BOOK COVER FORMING MACHINE
|
Model HY-DE-50 |
¡@¡@¡@¡@¡@ Eight precision numeric displays |
¡@¡@¡@¡@¡@ Quick form-plate changing and size pre-setting. |
¡@¡@¡@¡@¡@ Microprocessor-based inspection system displays if paper-jam or running-out, enable the operators to quickly |
¡@¡@¡@¡@¡@¡@eliminate the problem |
¡@¡@¡@¡@¡@ Human-machine interface and touch screen allow for easy monitoring, control and operation of the machine |
|
Specification |
min. |
max |
Case Open Size |
115 x 170 mm |
370 x 680 mm |
Board Thickness |
1 mm |
3 mm |
Spine Width |
8 mm |
80 mm |
Thickness of Rigid Spine |
1 mm |
3 mm |
Thickness of Flexible Spine |
0.3 mm |
0.5 mm |
Thickness of Cover Material |
0.1 mm |
0.15 mm |
Machine Weight ¡G4500 kg |
Capacity¡Gup to 50 Cases/Min. |
|
|
DELUXE BOOK COVER FORMING MACHINE¡@¡@Model HY-DE-40 (Two Sides)
|
DELUXE BOOK COVER¡@ FORMING MACHINE¡@¡@Model HY-DE-35(Four Sides)
|
|
Book Size |
W 90-520 mm |
Forming Speed |
L 10 ¡V 580 mm |
Power |
7-40 Units/Minute |
Electric Heate |
4 KW |
Machine Weight |
1000 KG |
Machine Dimension |
5500 x 1500 x 1200 mm |
|
|
|
Book Size |
W 100 - 420 mm |
L 160 ¡V 700 mm |
|
Forming Speed |
35 Units/Minute |
Power |
5HP/220V |
Electric Heate |
4 KW |
Machine Weight |
1700 KG |
Machine Dimension |
6500 x 2500 x 1200 mm |
|
|
|
|
DELUXE BOOK COVER FORMING MACHINE ¡@¡@Model HY-DE-15¡@(One Sides)
|
SHEET FEED LAMINATING MACHINE ¡@¡@¡@¡@¡@¡@Model HY-DE-38
|
|
Book Size |
Width 500 mm |
Cardboard thickness |
1 ¡V 3 mm |
Forming Speed |
15 sheets/Minute |
Power Required |
1/4 HP/220V |
Electric Heater |
4 KW |
Machine Weight |
85 KG |
Machine Dimension |
1050 X 500 X 800 mm |
|
|
|
Sheet Width |
90 ¡V 520 mm |
Sheet Thickness |
80 ¡V 200 GSM |
Cardboard thickness |
1-3 mm |
Production Speed |
7 - 45 Sheets/Min |
Heater Required |
4 KW |
Power Required |
3 HP |
Machine Dimension |
4500 x 1500 x 1200 mm |
Machine Net Weight |
700 KG |
|
|
|
|
SEMI-AUTO CASE FORMING MACHINE¡@¡@¡@¡@Model HY-BT-4
|
AUTO CASE ANGEL PASTI MACHINE¡@¡@¡@¡@ ¡@Model HY-AL-42
|
|
Forming by motorized hoisting mould, use brush |
to fold and smoothen paper edge then output |
automatically |
|
Max. Case Size |
L430 x W 360 x H100 mm |
Min. Case Size |
L100 x W 40 x H15 mm |
Production Speed |
10-20 Units/Min |
Power Required |
1 HP |
Machine Dimension |
1500 x 1500 x 2700 mm |
Machine Weight |
500 KG |
|
|
|
To stick paper tape On 4 corner of box precisely |
Applied heat-sensing tape 19 mm width |
|
Max. Case Size |
L450 x W360 x H120 mm |
Min. Case Size |
L80 x W40 x H10 mm |
Production Speed |
10-40 Units/Min. |
Power Required |
1-1/2 HP |
Heater |
800 W |
Machine Dimension |
2000 x 1500x 1900 mm |
Machine Weight |
800 KG |
|
|
|
¡@¡@¡@¡@CASE ANGLE TUCK-IN MACHINE¡@¡@ |
Model HY-BT-16 |
|
¡@¡@¡@¡@CASE ANGLE PASTING MACHINE¡@¡@ |
Model HY-AL-15 |
|
|
Right angle worktable has sheet grips to grips |
¡@to make inner turn on double edge of hard |
¡@case. |
Motorized horizontal pressure device is |
¡@controlled with sensor.¡@ |
|
Max. Case Size |
L420 x W360 x H150 mm |
Production Speed |
10-20 Units/Min. |
Power Required |
1/3 HP |
Machine Dimension |
850 x 800 x 1000 mm |
Machine Weight |
200 KG |
|
|
|
Motorized single arm pressing device equipped |
¡@with temperature controller |
Turn over box by hand, workable for various |
¡@kind of box |
|
Max. Case Size |
L40 x W40 x H10 mm |
Production Speed |
10-20 Units/Min |
Power Required |
1/3 HP |
Heater |
340 W |
Machine Dimension |
800 x 500 x 1400 mm |
Machine Weight |
120 KG |
|
|
¡@¡@ ¡@¡@¡@¡@¡@¡@ ¡@¡@
|
