POKER MAKING EQUIPMENT
One complete line of POKER (Playing Cards) Making Equipments will include
¡@*One Set of STRIPPING SLITTING MACHINE Model CS-6 , CS-10
¡@*Two or Three Sets of BLOCK CUTTING MACHINE Model CB-9, CB-11
¡@*One Set of OIL PRESSURE SHAP CUTTER Model OS-4
¡@*One Set of PACKING MACHINE Model P-4

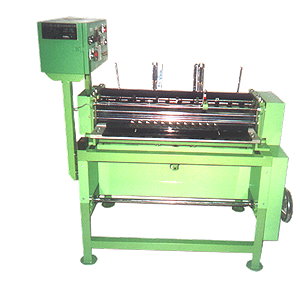

STRIP SLITTING MACHINE

    1. Machine designed for easy operation and stable running, compact size to save your plant space.
    2. Circular-cutting is for long run, only need to do knife sharpening once a year.
    3. Side-lay device for precise cutting, and size-changing in accurately.


MODEL

CS-6

CS-10

Max. Sheet Width

620 mm

900 mm

Min. Slitting Interval

25 mm

25 mm

Machine Speed

258 RPM./Min.

258 RPM./Min

Power Required

1/2 HP

1/2 HP

 Machine Dimension

120 L x 102 W x 87 H cm

145 L x 120 W x 87 H cm

Wooden Case Dimension

140 L x 122 W x 110 H cm

165 L x 140 W x 110 H cm

Machine Net/Gross Weight

200 kg / 300 kg

220 kg / 320 kg

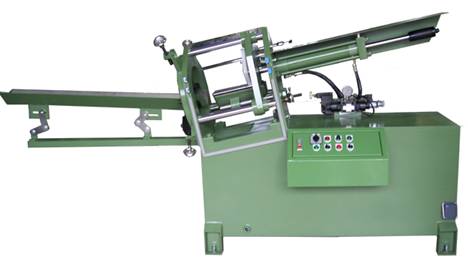

BLOCK CUTTING MACHINE

    1. Machine designed for easy operation and stable running, compact size to save your plant space.
    2. Circular-cutting is for long run, only need to do knife sharpening once a year.
    3. Build with Electronic control, for pre-set cutting sheets number and adjusting its collect speed.
    4. Fine adjustment Side-lay device for precise cutting.
    5. Strip Feeding from bottom side.



MODEL

CB-9

CB-11

Max. Sheet Width

600 mm

780 mm

Min. Slitting Interval

25 mm

25 mm

Machine Speed

114 RPM./Min.

114 RPM./Min.

Power Required

3 x 220V, 60 HZ,¡@1/2 HP

3 x 220V, 60HZ,¡@1/2 HP

 Machine Dimension

110 L x 80 W x 133 H cm

137 L x 80 W x 133 H cm

Wooden Case Dimension

130 L x 100 W x 155 H cm

157 L x 100 W x 155 H cm

Machine Net/Gross Weight

220 kg / 320 kg

250 kg / 350 kg
¡@

OIL PRESSURE SHAPE CUTTER

    1. Machine designed for easy operation and stable running.
    2. Quick and Easy to change the mould.
    3. Fast speed to allow 4 or 5 packs in one travel back and forth.
    4. Build with two sets of electric sensor to protect operators safety.
¡@¡@
¡@

MODEL

OS-4

Max. Pressure

100 kg/cm2

Cylinder Stoke

20 Strokes/Min

Power Required

5 HP

Machine Dimension

144 L + 77 W x 145 H cm

Wooden Case Dimension

164 L x 97 W x 157 H cm

Machine Net / Gross Weight

500 kg / 600 kg
¡@¡@¡@

FLEXIABLE PACKING MACHINE

An Ideal Machine for small packages such as Cigarettes, Poker Cards, Medicine Boxes, etc.

    1. Machine designed for easy operation and maintenance.
    2. Machine will stop running automatically while no materials fed in.
    3. Applied PT (K), OPP polyethylene lamellae.
    4. Also able to glue the pack with tear, allowed to tear off the pack and uncover.
    5. Build with inverter, able to do multi steps speed-adjustment, auto counting function and heat regulation.
¡@¡@¡@
¡@

MODEL

P-4

Machine Speed

40 ¡V 60 PCS/Min.

Heating Plate

110 W x 3 PC

Power Required

3/4 HP

Machine Dimension

92 L x 65 W x 165 H cm

Machine Net Weight

700 kg

¡@¡@¡@¡@¡@
