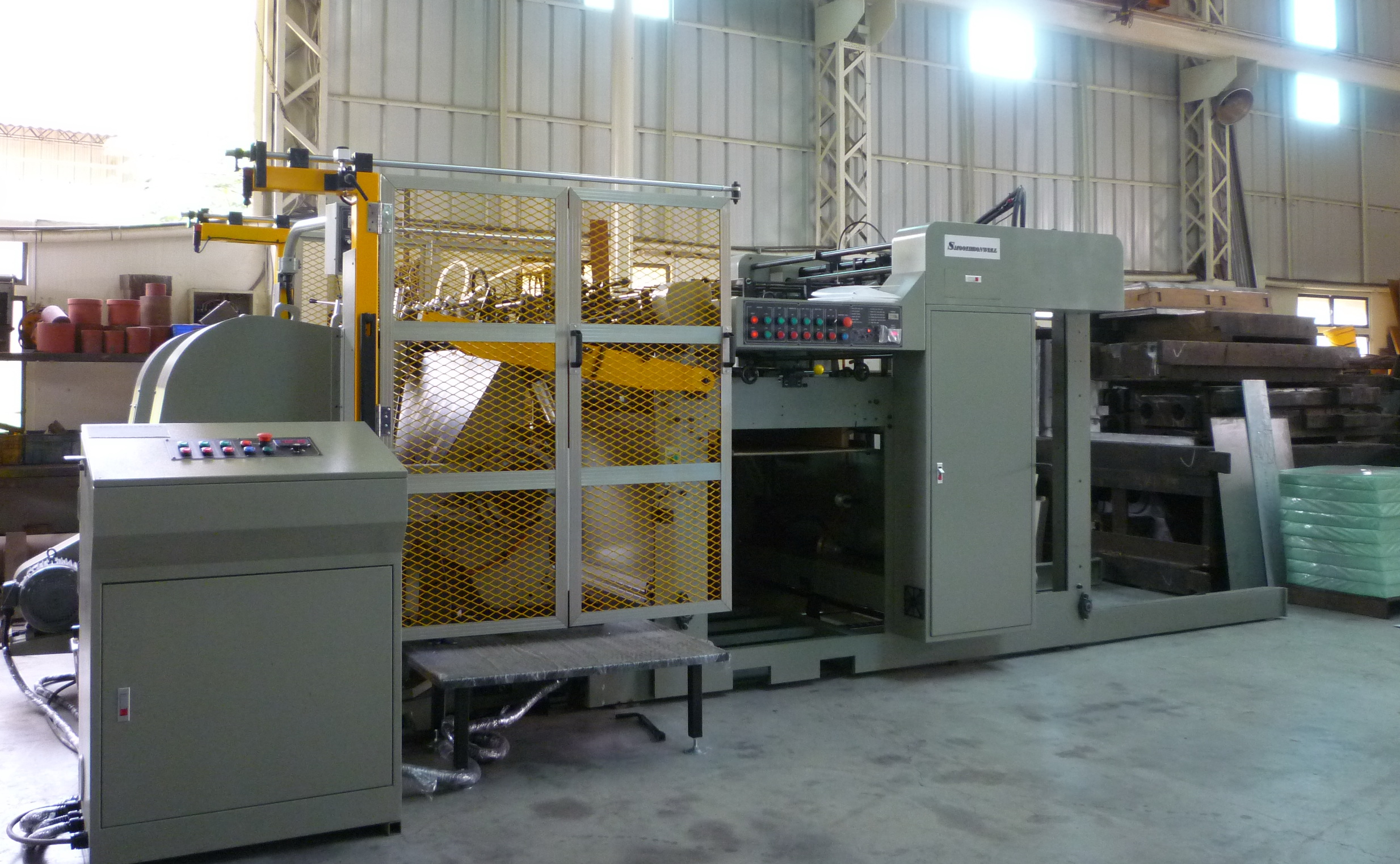

Automatic Clam Shell Diecutting Machine
Model. JSF-1150¡@Automatic Cutter and Creaser
|
|
|
SPECIFICATION |
JSF-1150 |
Size of Cutting Plate |
1150 x 850 mm |
Maximum Sheet Size |
1090 x 790 mm |
Minimum Sheet Size |
520 x 360 mm |
Thickness of Material Card board |
Card board: 0.2 - 3 mm/ Plastic board: 0.2 - 2 mm
Corrugated board up to 7.8 mm |
Maximum Speed |
2100 sheets/hour (depend on stocks) |
Machine Weight |
9000 kg |
Machine Dimension |
L 5900 x W 2100 x H 2000 mm |
Power Required |
12 KW |
|
|
Automatic Clam Shell Diecutting Machine |
Model. JSF-1650¡@Automatic Cutter and Creaser
|
| SPECIFICATION |
JSF-1650 |
| Size of Cutting Plate |
1800 x 1270 mm |
| Maximum Sheet Size |
1650 x 1200 mm |
| Minimum Sheet Size |
660 x 660 mm |
| Thickness of Material Card board |
0.2 – 3 mm |
| Plastic board |
0.2 - 2 mm |
| Corrugated board |
up to 7.8 mm |
| Maximum Speed |
1200 sheets/hour
(production speed shall depend on job size and material quality) |
| Machine Weight |
16,000 kg |
| Dimension |
L 8000 x W 3100 x H 2300 mm |
| Power |
22 KW |
| Shipment container |
one 20'GP + one 20' flat rack |
|
|
|
|
