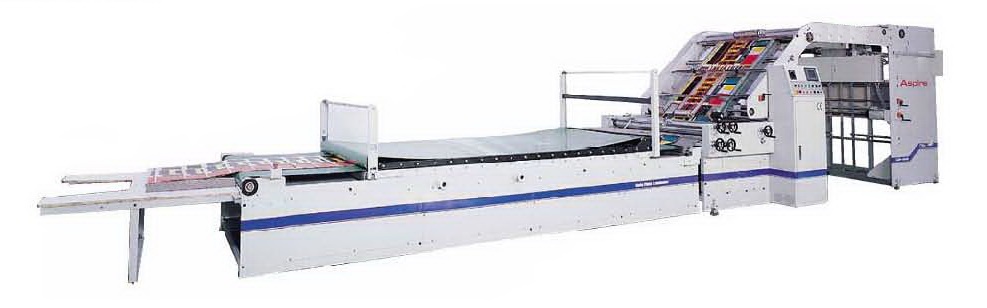

SMOOTHBONWELL HIGH SPEED SERVO LAMINATOR

Model	CS-1316	CS-1416	CS-1616
Max. Sheet Size W x L mm	1,300 x 1,300 mm	1,450 x 1,450 mm	1,650 x 1,650 mm
Min. Sheet Size W x L mm	450 x 450 mm	450 x 450 mm	550 x 550 mm
Thickness of Litho Sheet (gsm)	120 – 800 gsm	120 – 800 gsm	120 – 800 gsm
Thickness of Substrate Sheet (mm)	0.5 - 10 mm	0.5 - 10 mm	0.5 - 10 mm
Machine Speed (m/ min)	150	150	150
Machine Speed (sheet/ min)	10,000	9,000	8,000
Typical Speed (Sheet min)	8,000	7,200	6,400
Accuracy (mm)	±1.5 mm	±1.5 mm	±1.5 mm
Machine Space (L x W x H mm)	10,050 x 2,394 x 2,180 mm	12,515 x 2,544 x 2,180 mm	12,515 x 2,740 x 2,180 mm

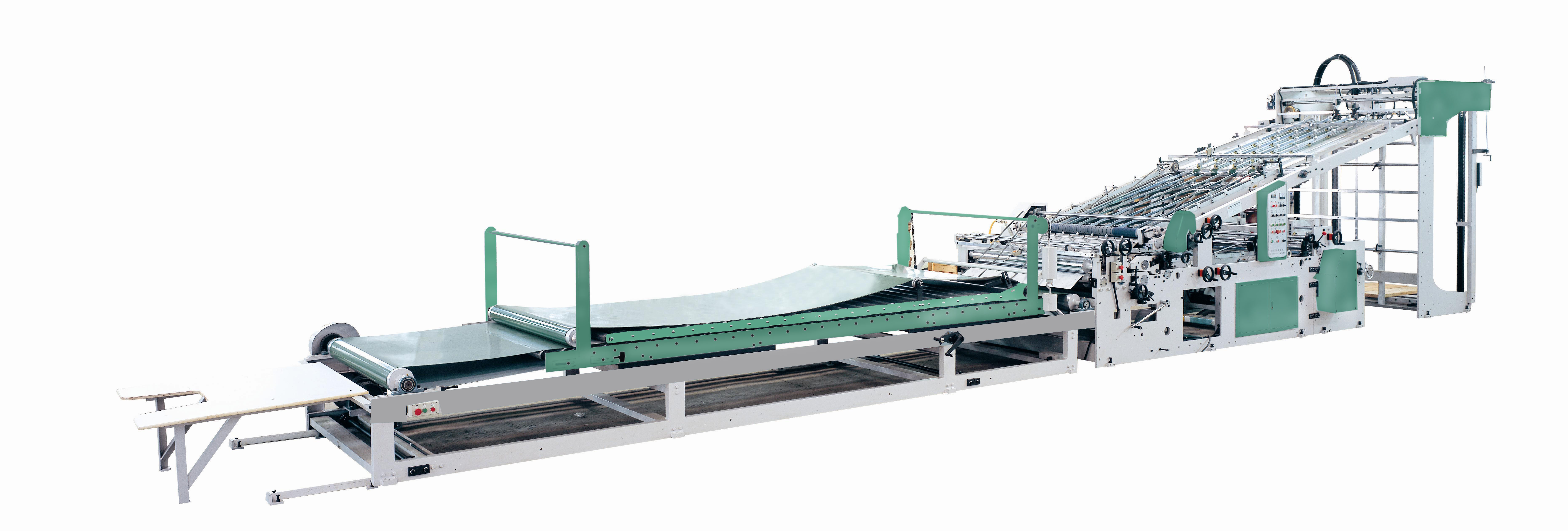

SMOOTHBONWELL AUTOMATIC LAMINATOR

For sheet-to-sheet laminating of paper and cardboard-to-cardboard, and corrugated board

A combination of mechanical and photocell controls to bring in consistent registration accuracy

of less than +/- 1.5 mm.

Model	ST-1100	ST-1300	ST-1450	ST-1600	ST-1850
Max. Sheet Size	1100 X 1100 mm	1300 x 1100 mm	1450 x 1100 mm	1600 x 1100 mm	1850 x 1100 mm
Min. Sheet Size	350 x 370 mm	350 x 370 mm	350 x 370 mm	400 x 370 mm	550 x 370 mm
Machine Speed	100 PC /MIN	100 PC / MIN	100 PC / MIN	100 PC / MIN	80 PC / MIN
Machine Length	11980 mm	11980 mm	11980 mm	11980 mm	13150 mm
Power Required	15 HP	15 HP	19 HP	21.5 HP	22.5 HP

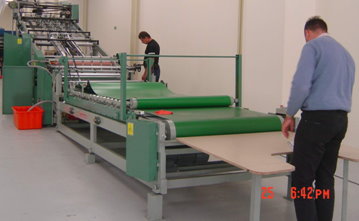

TOP FEEDER

Automatic suction cup Top Feeder is designed to handle materials from 220 g/m2 up to 800 g/m2

Equipped with 5 or 6 sets of forwarding suckers and powerful vacuum pump imported from

　Germany or Japan, ensuring smooth transportation of top sheets.

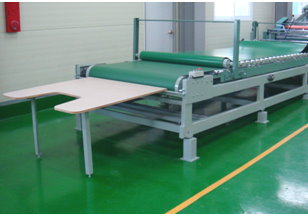

Standard with 2-section table allowing the operation to do pre-loading on the lower section

　table during machine running to save down time.

Optional with Pre-loading Device outside of Top Feeder to increase production efficiency.

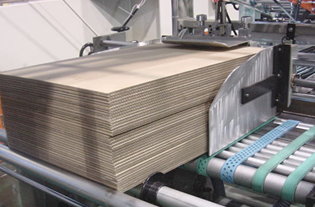

SUBSTRATE SHEET FEEDER

Bottom Feeder for corrugated board with suction belts to handle materials from 270 - 800 g/m2

SBL Laminator is available to provide different Feeder Suction type to suit your most job demanding,

　such as wider or bending corrugated board, heavy double wall corrugated board

REGISTRATION SYSTEM and PRECISION GLUING UNIT

The top and bottom sheets are registered automatically from the back-push as well as the operation side

　guide while they are on the feeding table way, thus ensuring 6000 sheets per hour maximum speed and

　remaining accuracy within +/- 1.5 mm at the lead and back, +/- 0.5 mm on the side guide..

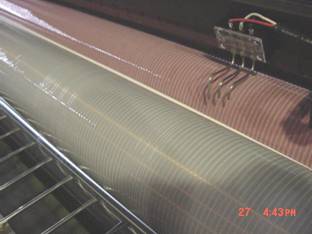

Available with transparent acrylic on the Feeder Table is easy to observe the grooved Glue Roller.

The Gluing Unit for accurate application of cold PVA glue is equipped with automatic glue dispenser directly

　connected to the glue container.

The glue is automatically kept under control by a detect sensor, for a consistent supplement and stop at

　an accurate level.

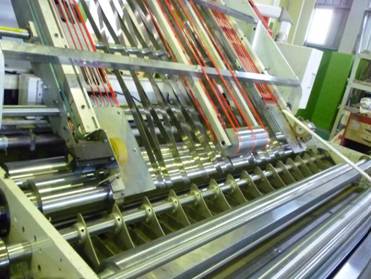

Special designed with grooved glue roller is easy to glue evenly for a wide variety of substrates

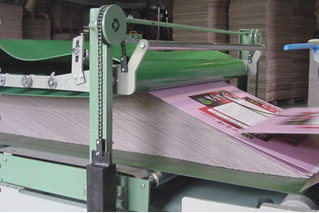

SHINGLE PRESSURE BELT and STACKING TABLE

Shingle pressure belt is a continuous running rubber belt to remain perfect lamination.

Stacking table for the stacking of finished products

Both Pressure Belt Station and Stack Table are raised to operators height for User-friendly.

　　Top Feeder able to take jobs :

Cardboard (200 ~ 800 gsm)

Single wall corrugated board (E flute)

　　Bottom Feeder able to take jobs :

Cardboard (270 ~ 800 gsm)

Flute sheet (2 ply corrugated board , E , F , B , A flute)

Single wall corrugated board ( E , B , A flute)

ply corrugated board ( E+E , E+B , B+A flute)

Double wall corrugated board ( E+E , E+B , B+A flute)

　　SBL CardBoard Laminator able to finish jobs :

Cardboard + Cardboard(250~800gsm)　(300~800gsm)

Cardboard + 2-ply corrugated board (E , F , B , A flute)

Cardboard +Single wall (E , B , A flute)

Single wall (E flute) + 2-ply corrugated board (E , F , B , A flute)

Cardboard + 4-ply corrugated board (E+E , E+B , B+A flute)

Cardboard + Double wall corrugated board (E+E , E+B , B+A flute)

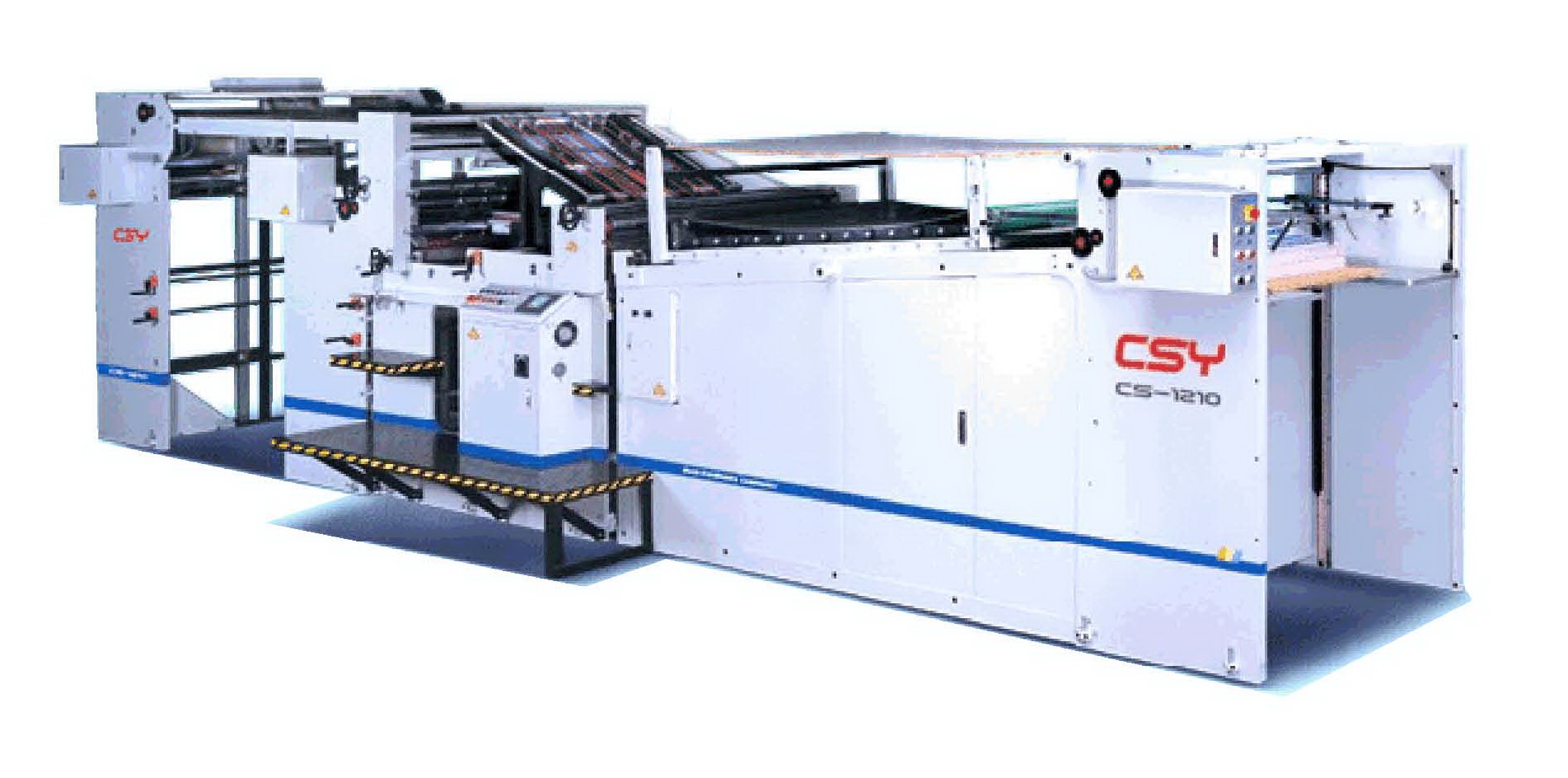

AUTO CARDBOARD TO CARDBOARD LAMINATOR

Aligning Mechanism：Innovative dynamic aligning, synchronized laminating mechanism; For paper with better flatness and stiffness, the aligning accuracy can be maintained +/- 0.5m/m. The lamination is accurate and fast with finished product perfect and excellent. It will boost working efficiency greatly.

Model	CS-1207	CS-1210	CS-1410	CS-1612
Max. Sheet Size WxL (mm)	1200 x 720	1200 x 1000	1450 x 1020	1650 x 1250
Min. Sheet Size WxL (mm)	450 x 450	450 x 450	600 x 600	600 x 600
Thickness of upper paper (g/㎡)	100～800	100～800	120～800	120～800
Thickness of bottom paper (g/㎡)	180～800	180～800	200～800	200～800
Speed of lamination (pcs/min)	150	110	100	100
Laminator error (mm)	±0.5	±0.5	±0.5	±0.5
Total weight (kg)	7500	7000	6500	6000
Total length (m)	9	9	11	11
Operation space (m)	3 x 12	3 x 12	4 x 14	4 x 14
Total power	220v/380v 3～ (15hp)	220v/380v 3～ (15hp)	220v/380v 3～ (18hp)	220v/380v 3～ (18hp)

New Type Auto Flip Flop Stacker with Auto Litho Laminator
