CORRUGATED BOX FOLDER GLUERS @@@

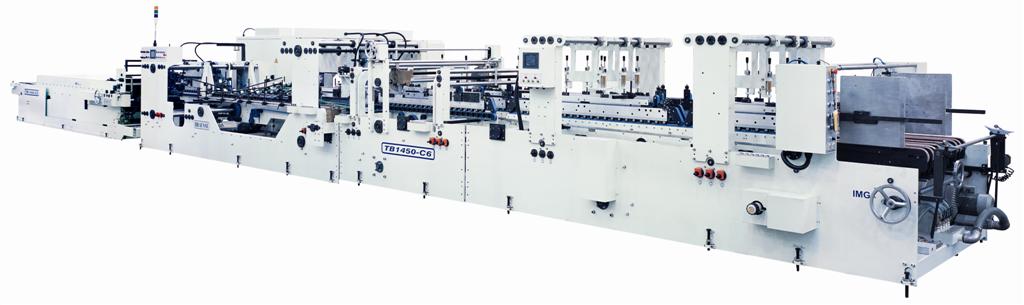

MODEL : TB1450-C6

Specifications:

Max. Sheet Size

1,450 mm W 1,100 mm L

Min. Sheet Size

165 mm W 70 mm L

Max. Belt Speed

280 m/min

Overall Length

19,390 mm

Overall Height

2,000 mm

Overall Width

2,400 mm

Main Motor

30KW

Conveyor Motor
Max Pumping Capacity

5.5KW
0.7m3/min

Total Weight

15 T


@ @@@@@@@@@@
@@

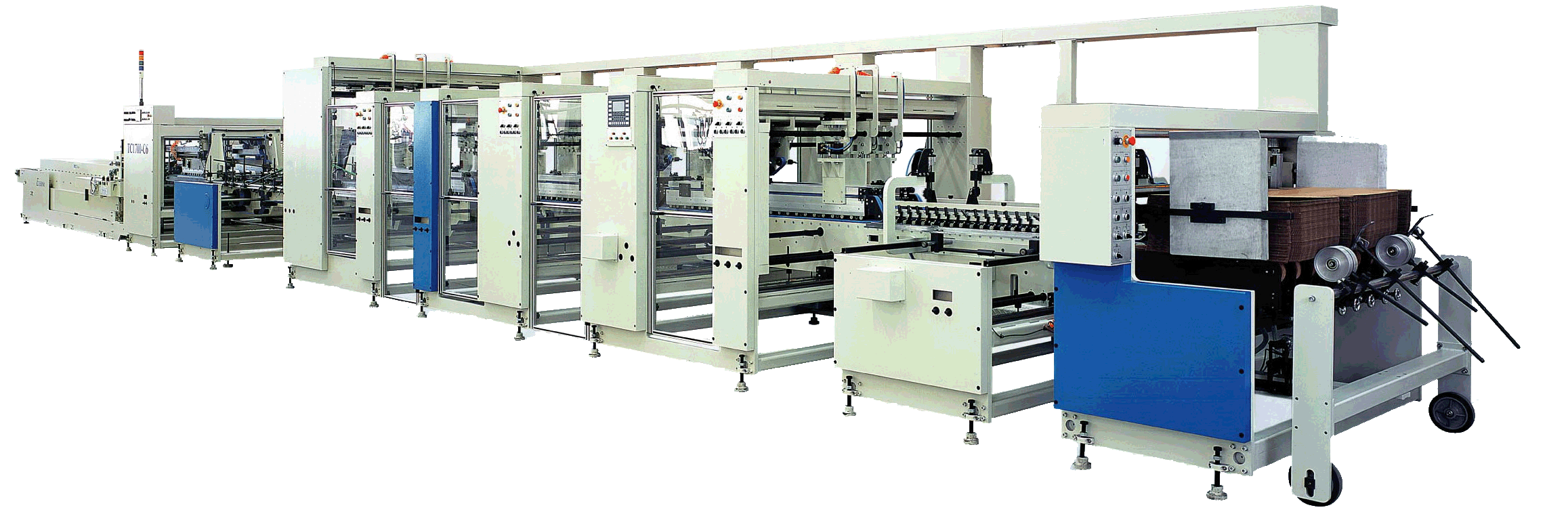

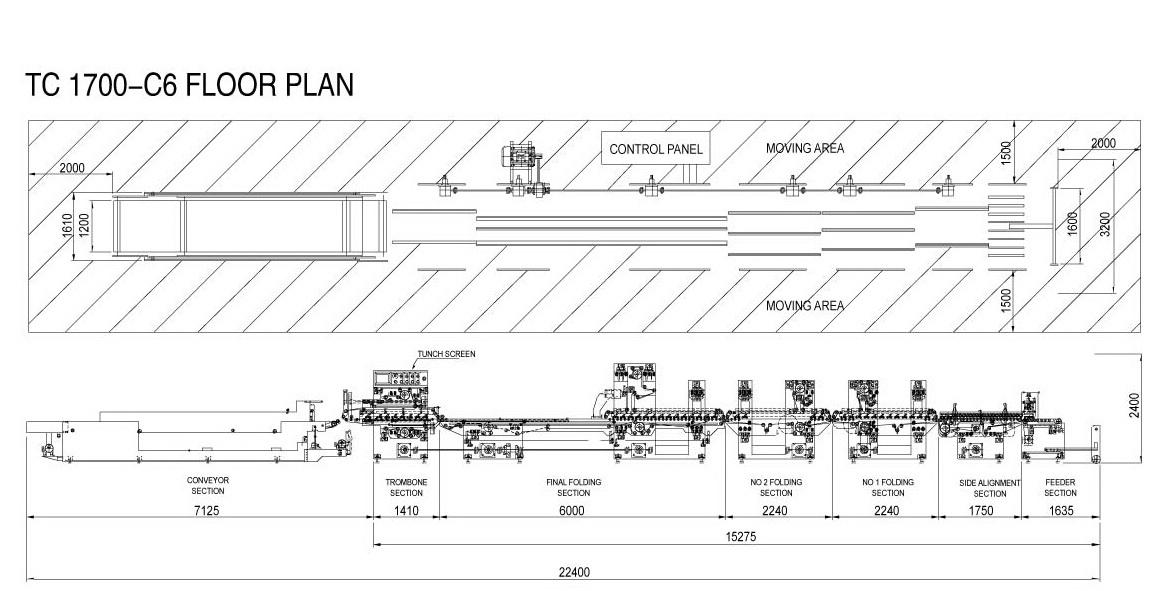

MODEL : TC1700-C6

Specifications:

Max. Sheet Size

1,700 mm W 1,300 mm L



Min. Sheet Size

400 mm W 120 mm L

Max. Belt Speed

:260 m/min

Overall Length

23,095 mm

Overall Height

2,400 mm

Overall Width

3,200 mm

Main Motor

55 KW

Conveyor Motor
Max Pumping Capacity

5.5 KW
0.7m3/min

Total Weight

25 T




@ @@@@@@@@@@
