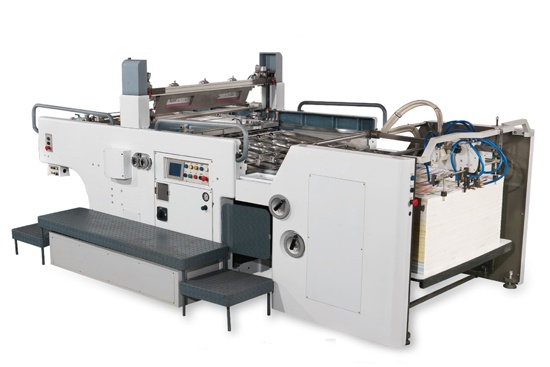

@@@Automatic Stop-cylinder Screen Printing Machine (360° Rotary Type)

Applicable on non-deforming materials to give high precision color printing.



@@@Rotary stop-cylinder structure: The design of 360o vacuum cylinder is for high precision printing.
@@@The screen frame can be pulled to check feeding paper easily, and cleaning screen as well as cylinder.
@@@@The frame is still fixed on the frame base without moving, so there is no need to re-position the frame
@@@@ for printing.
@@@SPLC control and easy to set up jobs via HMI touch screen.


Model:

KW-72A

KW-86A

KW-105A

Max. substrate size (mm)

720 x 520

800 x 600

1050 x 750

Min. substrate size (mm)

350 x 270

350 x 270

560 x 350

Substrate thickness (mm)

0.05 ~ 0.5

0.05 ~ 0.8

0.075 ~ 0.8

@@@@@@

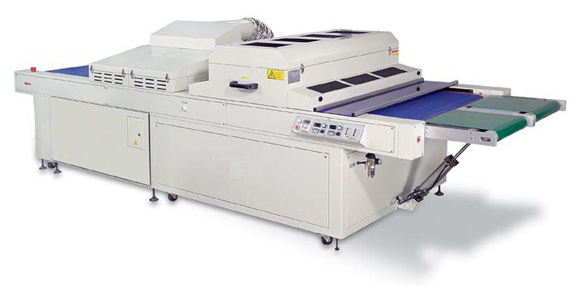

@UV Conveyor Dryer

@@The UV conveyor dryer can connect with automatic cylinder screen printing machine or semi-auto screen printing machine
@@for curing UV ink or UV partial varnishing on non-deformed material after screen printing
@
@@Install pneumatic crossover bridge to connect with automatic cylinder press. It can be 90o bent down for
@@@cleaning screen easily
@@With bottom suction under UV lamp to prevent the printed substrate form fluttering.
@@Safety device: overload protector, over temperature protector, exhaust motor overload protector, fuse of control circuit
@@@

Model:

KW-72BII

KW-86BII

KW-105BII

KW-112BII

UV effective width (mm)

760

812

1060

1219

UV lamp power and lamp quantity

9KW x 2pcs
120W/cm2

11KW x 2pcs
120W/cm2

13KW x 2pcs
120W/cm2

14KW x 2pcs
120W/cm2

@
@@

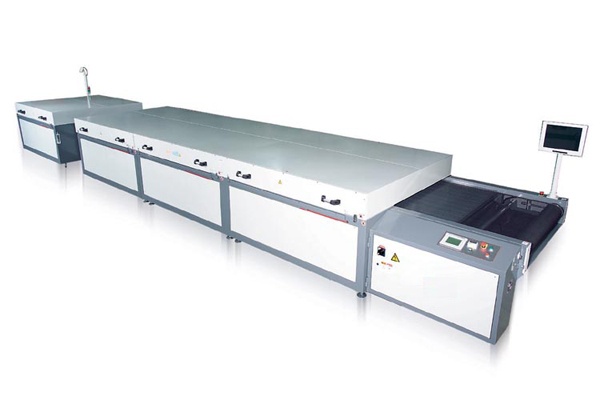

@High Efficient UV + Heating Jet Air Conveyor Dryer

@@With 90o crossover bridge to connect with automatic cylinder screen printing machine or semi-auto
@@ screen printing machine for curing non-deformed material after screen printing.
@
@@Individual control of hot air module & UV module. Custom-made length is available for hot or cooling module.
@@@Individual UV switch for each lamp.
@@The hoods of hot, cooling, UV modules can be lifted by gas filled cylinder, Its easy and safe for maintenance.
@@


Model:

KW-72UV+HA

KW-86UV+HA

KW-105 UV+HA

KW-112 UV+HA

UV effective width (mm)

760

812

1066

1219

UV lamp power

9KW x 2pcs
120W/cm2

11KW x 2pcs
120W/cm2

13KW x 2pcs
120W/cm2

14KW x 2pcs
120W/cm2

Max. temperature

90J

90J

90J

90J

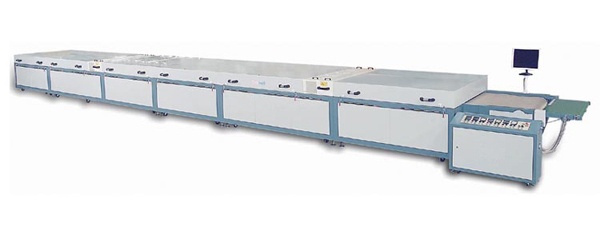

@HIGH EFFICIENT HEATING JET-AIR CONVEYOR DRYER

@@The machine can install crossover bridge to connect with automatic cylinder screen printing machine
@@ or semi-auto screen printing machine.
@@The length of the dryer can be arranged upon customers demand

@@The P.I.D values help the SCR to keep the constant temperature.
@@PLC temperature controlling module, HMI touch screen.
@@Install the camera with LCD to monitor the delivery status.


Model

KY-86HA-T

KY-96HA-T

KY-126HA-T

KY-136HA-T

Inlet with (mm)

860

960

1260

1360

Max. temperature

90J

90J

90J

90J

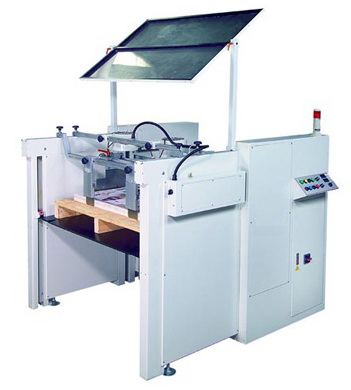

AUTOMATIC STACKER

Application: Install it at rear of dryer for

stacking printed substrates automatically.


Belt speed is adjustable.
Equipped with sensor for automatic stacking.
The warning lamp illuminates as the piled
@substrates reach the top limit.
The movement of stacking plate can be manually
@inching controlled

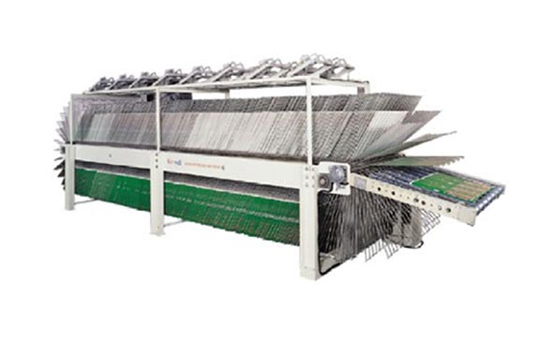

@@@@@Automatic Cooling Air Wicket Dryer (Standard type)
@@@@@@The machine can be connected with automatic cylinder screen printing machine
@@@@@@or semi-auto screen printing machine.

@@Two specifications of the interval of wicket rack for option: Chain size 3/4 or 1.
@@The racks can install automatic clamps (optional) for holding substrates during
@@@transmission. And the substrates will be released at the delivery and collected by the collection tray after one cycle.
@@Cooling is by electric fans. The strength of cooling fans can be adjusted. The length of the dryer can be arranged.
@@@upon customers demand


Model

KY-72WT

KY-86WT

KY-102WT

Max. stacking size (mm)

720 x 520

800 x 500

1050 x 750

Min. stacking size (mm)

350 x 270

350 x 270

420 x 297
