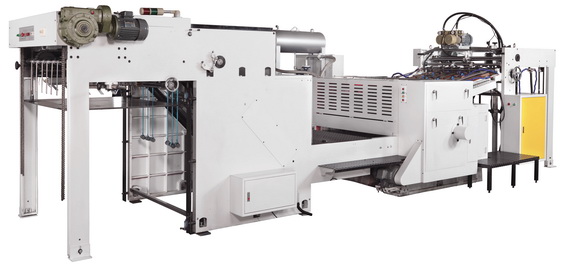

ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@High Precision Embossing Machine

ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@Model JS-E2

ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@ˇ@





Specifications :



Embossing area

: 1055 x 750 mm

Embossing plate size

: 1060 x 840 mm

Material thickness

: 0.05 ~ 0.9 mm

Power required

: 40 KW

Capacity

: 20 ~ 35 pcs / min.

(Depends on material and embossing patternˇ¦ depth)

Machine dimension

: 6240 x 2320 x 2110 mm

Machine weight

: 6500 kgs

Container

: 1 x 40ˇ¦ HQ



ˇ@ˇ@ˇ@Designed Features :

- Additional function : the pressure drum is designed with cooling feature , which renders uniform depth of figure and avoids deformation of plastic plates under work .
- Heating type of embossing , patterns made by stainless steel , cost saving from consumable , rapid development of new products .
- Wheel heating by hot paraffin , high-speed and equalize the temperature.
- Axial cooling , 10 spindle oil , cooling the axial till temperature in normally and let the machine get operation in regular .
- Pneumatic in-barrel and out-barrel , accurate time for in-barrel and out-barrel .
- Electronic governor of frequency inverter can be easy adjusted for high & lower speed .
- Oil feeding and time setting is by auto electronic device .
- The machine is suitable for all types of paper and also has a variety of plastic material embossing .
